Climate Group Helper for Home Assistant

Climate Group Helper for Home Assistant logo

HACS - Home Assistant Community Store Release

The advanced logic layer for your Home Assistant climate devices.
Sync, automate, and fix your thermostats — without a single line of YAML.

🔗 Group devices into one virtual controller.
🌡️ Fix inaccurate sensors with external calibration.
🪟 Detect open windows to pause heating automatically.
👤 Automate presence using away offsets and presets.
📅 Schedule automation via Schedule and Calendar entities.

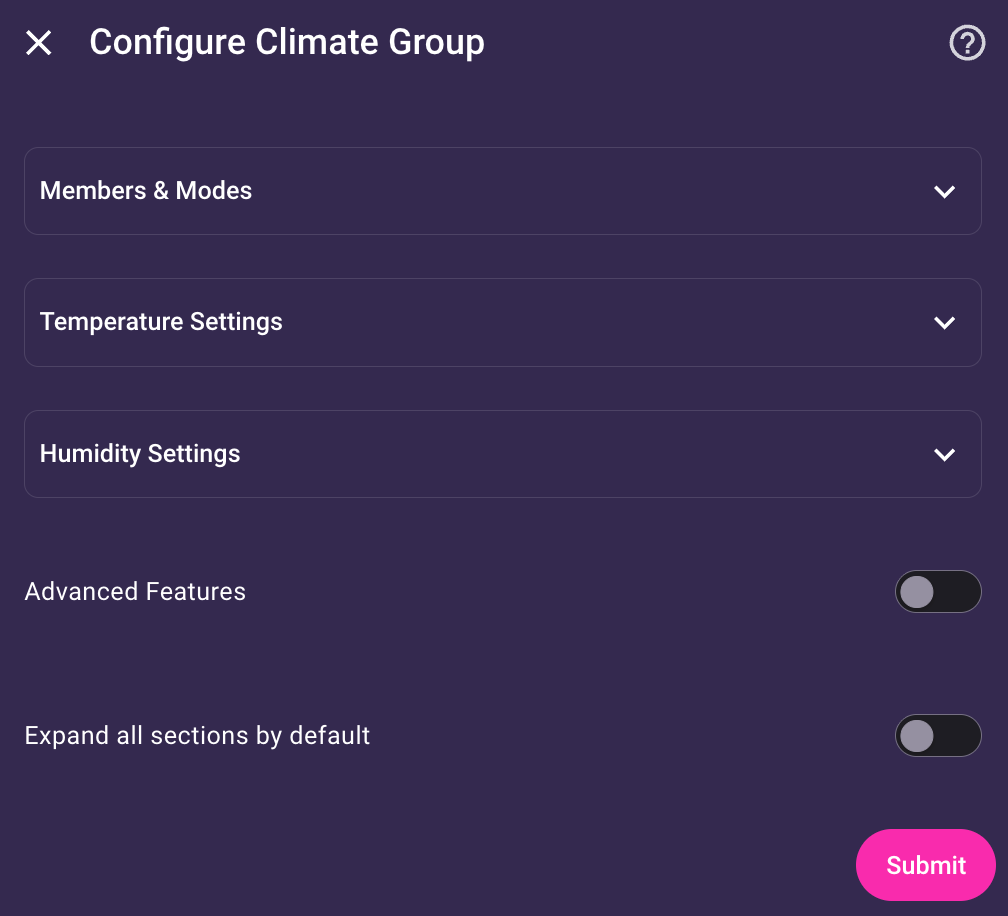

Climate Group Helper Simple Configuration Options Overview

Why this exists

Managing climate in Home Assistant can be messy: TRVs measure the wrong temperature at the radiator, native groups lack synchronization, and complex automations are hard to maintain.

Climate Group Helper acts as the intelligent “Logic Layer” for your home. It wraps your existing devices into a single controller that handles the “If this, then that” behavior for you automatically.

[!TIP] Not just for groups! Even if you have only one thermostat, you can use this helper to add premium features like Window Control and Sensor Calibration to basic hardware.

Quick Start

Step Action
1. Install Add via HACS and restart Home Assistant.
2. Add Go to Settings → Devices & Services → Helpers → Create Helper.
3. Setup Give your group a name and select your thermostats (TRVs, ACs, heaters — mix freely).
4. Done! You now have a single entity controlling everything.
Tip: Enable Advanced Mode in the options to unlock all features.

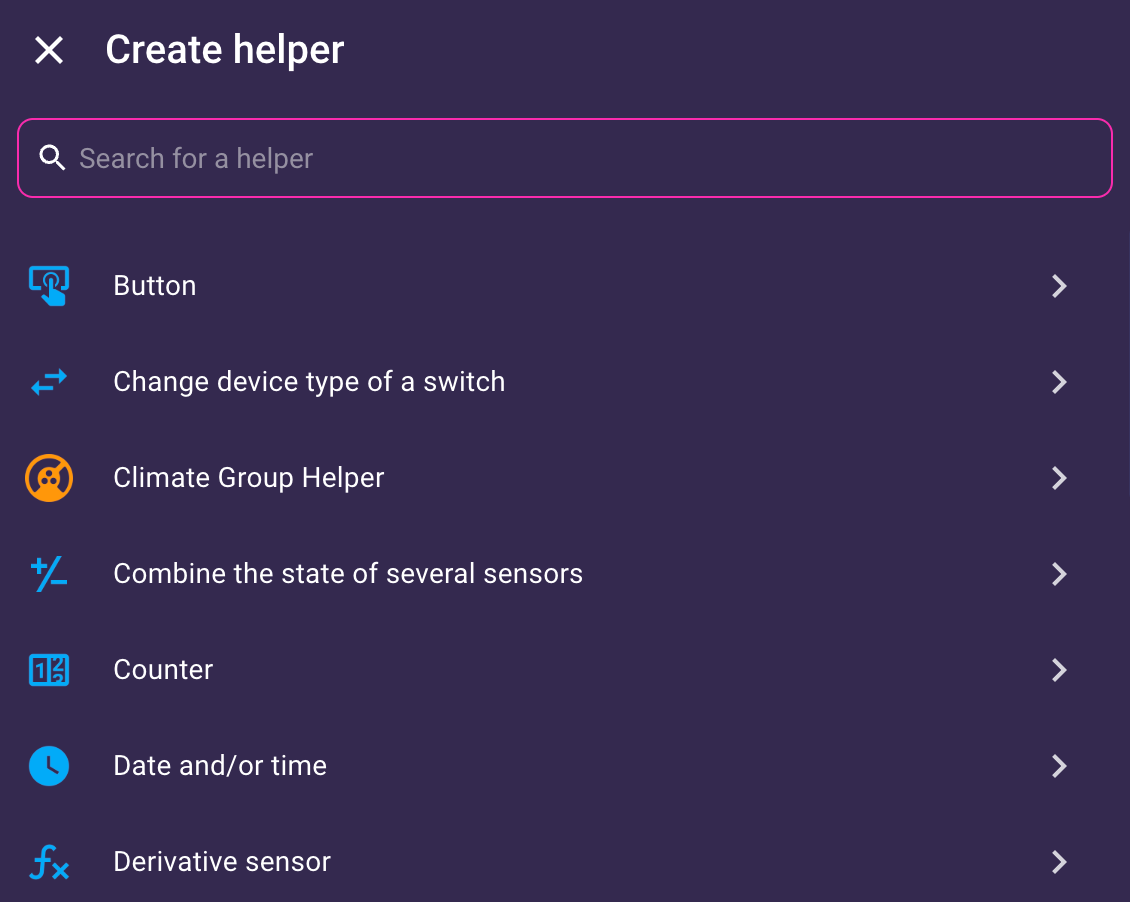

Select Climate Group Helper in Home Assistant

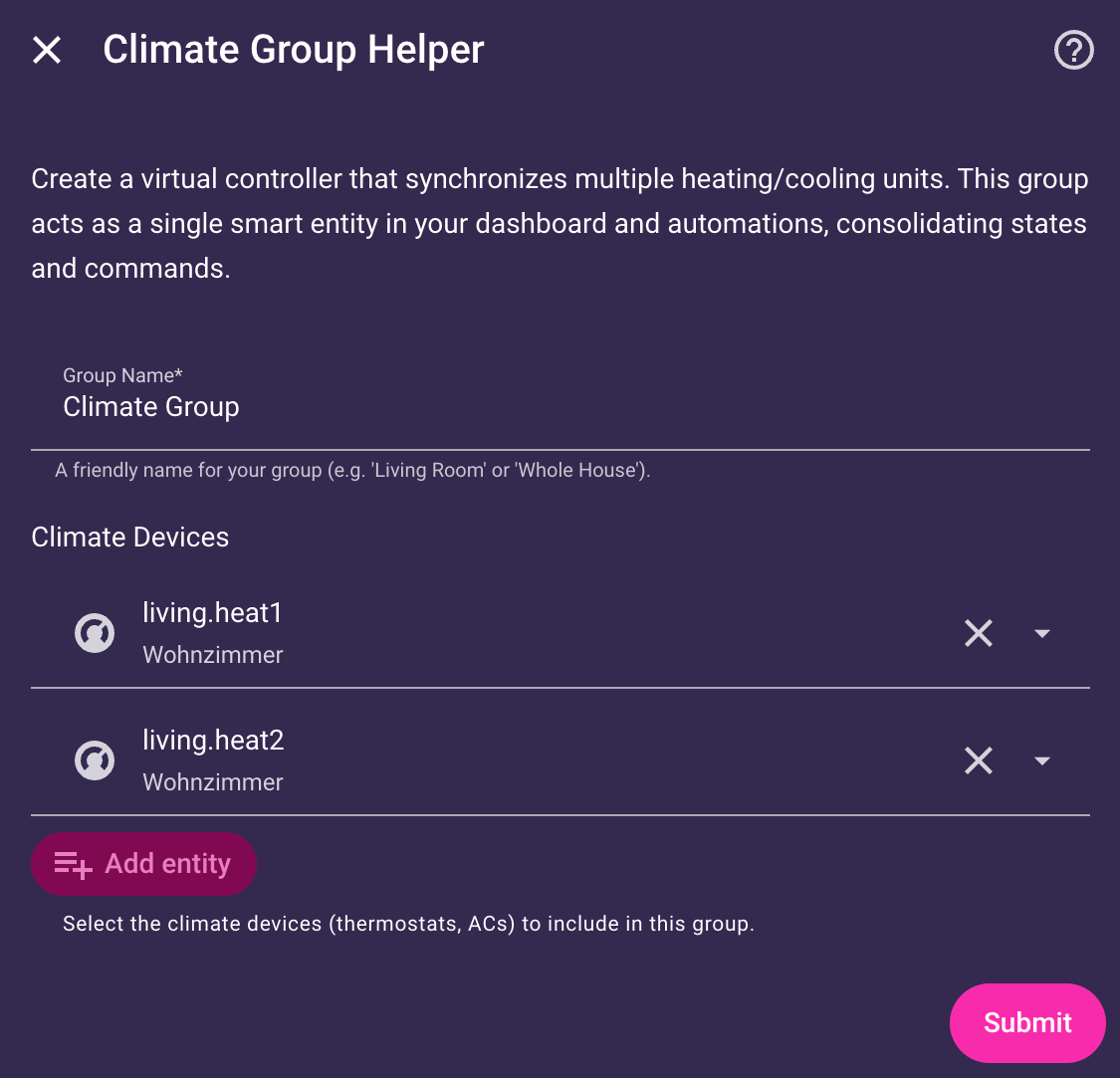

Configure Climate Group Helper

Table of Contents

Core Concept: The Unified Foundation

The Climate Group Helper provides a robust “Single Source of Truth” for your climate devices. It creates a unified management layer that ensures your devices work together as one cohesive system while maintaining accurate room states.

Simple Mode (Core Capabilities)

These features are active by default and provide a streamlined “Plug & Play” experience:

Power User: Advanced Features

Unlock the full potential of your climate system. These specialized features are enabled by toggling Advanced Features in the group’s configuration. Toggling back to Simple Mode hides these options and puts the features into hibernation — they stop running functionally, but your configuration remains intact and will be immediately restored when you switch back.

[!NOTE] New groups start in Simple Mode. Existing groups upgraded from earlier versions keep Advanced Features active automatically so nothing breaks.

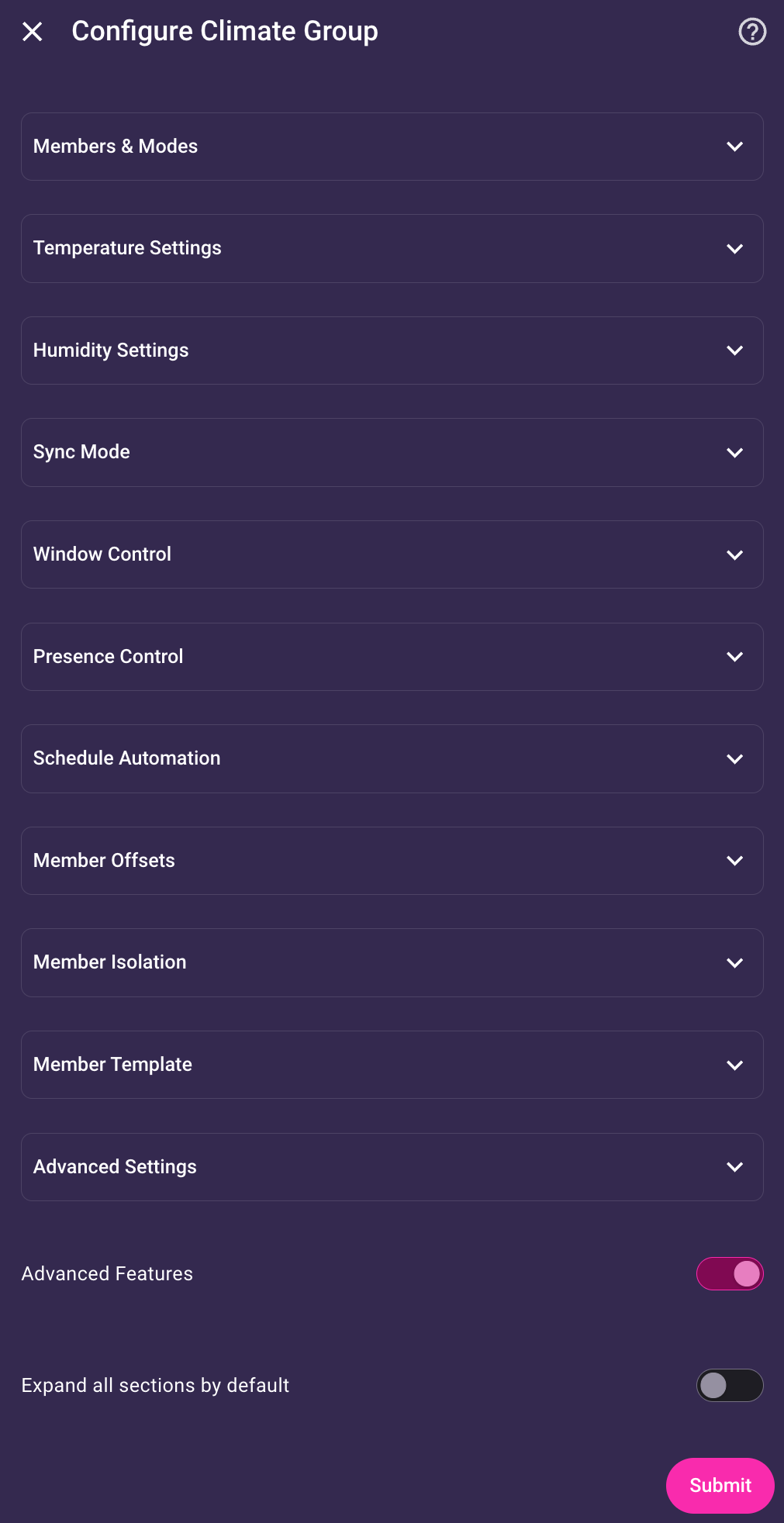

Climate Group Helper Advanced Configuration Options Overview

Master Entity

Designate a single climate member as the Reference Point or Leader for the group. This is the first thing you configure in the setup wizard — and once set, it unlocks additional options in every subsequent step (Sync Mode, Window Control, and Temperature/Humidity averaging).

External Sensors

Use multiple external sensors for temperature and humidity to override member readings, and optionally write the values back to TRV calibration targets.

Device Calibration

Write the external sensor value back to your TRVs to fix their internal temperature reading.

Advanced Sync Modes

Controls what happens when a member device is changed directly (e.g. via its own app or physical buttons) — not when you control the group itself.

Window Control

Automatically turn off heating or set a frost-protection temperature when windows or doors are opened, and restore the previous state when they close. While windows are open, manual changes are blocked. Supports binary sensors and cover entities.

Presence Control

Manage climate settings based on room presence. Select one or more triggers (binary sensor, device tracker, or person), optionally restricted to specific zones (e.g. to only trigger when someone is actually at ‘Home’). Configure delays and fallback actions for when the room becomes empty. The group is considered occupied if any sensor reports presence.

When presence returns, the group restores all members to the current target state. Window Control and the Main Switch always take priority over Presence Control.

Schedule Automation

Integrate native HA schedule or calendar helpers to automate your climate settings per time slot. You can set temperature and HVAC mode directly in the schedule’s data, and the group intelligently handles transitions: if a schedule change occurs while Window Control is active (e.g. heating is paused), the new target is applied immediately once everything is closed.

Schedules can be switched on the fly via service (e.g. for “Vacation” or “Guest” modes). Calling the service without an entity resets to the configured default and re-applies the current slot.

Schedule Configuration & Meta-Keys

Using a Schedule Helper

  1. Create a Schedule Helper in Home Assistant (Settings > Devices & Services > Helpers).
  2. Open the schedule and add your time slots.
  3. Crucial: Each slot needs additional data to tell the group what to do.
    • Click on a time block to edit it.
    • Expand Advanced settings.
    • Enter your desired state in the Additional data field.

Example (Additional data for a single slot):

hvac_mode: heat
temperature: 21.5

Using a Calendar Entity

Any calendar.* entity works — including calendars imported via integrations like Google Calendar, Apple Calendar, or Nextcloud. Slot data is read from each event’s Description field.

[!IMPORTANT] The Description field must contain only valid YAML. Any other text (e.g. a plain-text event description) will cause the event to be skipped. Keep the description field exclusively for the slot data.

Example (Calendar event description):

hvac_mode: heat
temperature: 21.5

You can use any climate attribute or meta-key in both schedule and calendar slots — the format is identical.

You can omit attributes you don’t need — for example, use only hvac_mode: "off" for a slot that turns heating off.

Supported climate attributes:

Attribute Example value Notes
hvac_mode heat, cool, off Depends on your devices
temperature 21.5 Single setpoint
target_temp_low 19.0 Lower bound (dual setpoint)
target_temp_high 24.0 Upper bound (dual setpoint)
humidity 50 Target humidity (%)
preset_mode eco, comfort Device-specific
fan_mode auto, high Device-specific
swing_mode on, off Device-specific
swing_horizontal_mode on, off Device-specific

Schedule Meta-Keys — these control the group itself rather than its members, and are active for the entire duration of the slot:

Key Possible values Example Effect
group_offset Float −5.0 … 5.0 group_offset: 1.5 Temporarily sets the Group Offset for the slot duration. If you move the offset slider manually while this slot is active, your value takes over and the slot-end reset is skipped.
sync_mode disabled, lock, mirror, master_lock sync_mode: disabled Temporarily overrides the configured Sync Mode for the slot duration. Useful for slots where you want members to be left alone (e.g. a “sleep” slot where manual adjustments are allowed).
sync_attributes Any subset of: hvac_mode, temperature, target_temp_low, target_temp_high, humidity, fan_mode, preset_mode, swing_mode, swing_horizontal_mode sync_attributes: [hvac_mode] Temporarily overrides which Sync Attributes are synchronized for the slot duration. Useful for slots where you want to sync only the mode but let members manage their own temperature. Restores to the configured Sync Attributes setting when the slot ends.
turn_off true / false turn_off: true Explicit two-state trigger: true turns all members off (equivalent to toggling the Main Switch off). false restores all members (equivalent to toggling the Main Switch back on). A slot without turn_off has no effect on the current state.

Example — night slot that turns everything off:

turn_off: true

Example — comfort slot that boosts all rooms by 1.5 °C above the preset setpoint and allows local adjustments:

preset_mode: comfort
group_offset: 1.5
sync_mode: disabled

The group normally runs in Lock mode. During this slot, sync_mode: disabled lets occupants tweak their own device without being reverted — useful when comfort preferences vary.

Member Offsets

Apply permanent individual offsets (±20°C) to each group member to account for physical room differences. The group intelligently handles these offsets during averaging and synchronization: for example, if the group is set to 21°C, a bedroom with a −1°C offset receives 20°C while the living room (+0.5°C) receives 21.5°C. Your logical setting remains a consistent 21°C across all group interfaces.

Member Isolation

Temporarily isolate specific members from the group using sensors or state triggers. While isolation is active, these devices are excluded from all group calculations and synchronization — as if they were not members of the group. At least one member must always remain active to ensure the group stays operational.

You can define up to 4 independent isolation rules per group, each with its own trigger, member list, delays, and isolation action — useful for rooms with mixed device types. For example, a room with both a radiator (heat-only) and an AC (heat/cool) can use one rule to isolate the AC when the group switches to heat, and a second rule to isolate the radiator when it switches to cool. Each rule’s isolation action controls what command is sent to the member when isolation activates — either an HVAC mode (default: off) or a preset mode for devices that require a specific standby state.

You can define up to 4 independent isolation rules per group, each with its own trigger, member list, and delays — useful for rooms with mixed device types. For example, a room with both a radiator (heat-only) and an AC (heat/cool) can use one rule to isolate the AC when the group switches to heat, and a second rule to isolate the radiator when it switches to cool.

Member Template

A Member Template wraps individual group members with a virtual capability profile that differs from what their Home Assistant integration natively reports. From the group’s perspective — and from all features built on top of it (Sync Mode, Schedule, Calibration, etc.) — the wrapped member looks and behaves like a device with a different set of capabilities. The physical device itself is unaffected.

Range Template

Translates outgoing heat_cool range commands into single-setpoint commands for members whose HA integration only exposes a single temperature attribute, even though the underlying device physically supports auto-changeover. The group exposes target_temp_low and target_temp_high; each wrapped member receives a physical single-setpoint command based on the current room temperature:

Management Entities (Switch & Slider)

Alongside the main climate entity, the integration creates additional helper entities to provide direct control points for your dashboards and automations.

Main Switch

A dedicated switch entity acts as a master on/off toggle for the entire group. It is useful for summer months, extended absences, or any situation where you want the group completely disabled without touching your schedules or target settings. While the switch is off, all manual and automated commands are blocked.

Group Offset

A dedicated number entity allows you to apply a global temperature shift (±5.0°C) to all group members. Use it to temporarily adjust the room’s comfort level without modifying your underlying schedule or target settings. The offset acts as a non-destructive layer: a +1.5°C offset shifts a 20°C morning setpoint to 21.5°C and automatically follows a schedule transition to 23.5°C in the evening.

Configuration Options

Members & Group Behavior

Option Description
Master Entity Designate one member as the group’s Leader. Enables Master/Lock sync mode, Master-aware window tracking, and centralized temperature/humidity target.
HVAC Mode Strategy How the group reports its combined mode. See table below.
Feature Strategy Which features the group exposes. See table below.
Out-of-Bounds Action (Union only) What to do when a target temperature is outside a member’s range.
Unsupported HVAC Mode Action (Union only) What to do with members that don’t support the requested mode.

HVAC Mode Strategy

Strategy Behavior
Normal Group shows most common mode. Only off when all are off.
Off Priority Group shows off if any device is off.
Auto Smart switching between Normal and Off Priority.

Feature Strategy

Strategy Behavior
Intersection Features (e.g. Fan) supported by all devices. Safe mode. Temperature range is the narrowest common window across all members.
Union Features supported by any device. Temperature range spans the full range across all members (widest min/max). When a target temperature falls outside a member’s supported range, the configured Out-of-Bounds Action applies.

Out-of-Bounds Action (Union only)

Action Behavior
Off (Default) Member is turned off when the target temperature is outside its supported range. Restored automatically when the target moves back in range.
Clamp Member is set to its nearest supported limit (min_temp or max_temp).

Unsupported Mode Action (Union only)

Action Behavior
Ignore (Default) Member stays in its current mode if it doesn’t support the target mode.
Off Member is turned off when it doesn’t support the target mode (e.g. AC when heating).

Temperature & Humidity Settings

Option Description
External Sensors Select one or more sensors to override member readings.
Use Master Temperature/Humidity (Requires Master Entity) Use the Master’s target value instead of averaging across all members.
Averaging Method Mean, Median, Min, or Max—separately for Current and Target values.
Precision Round target values sent to devices (e.g. 0.5° or 1°).
Calibration Targets Write calculated temperature to number entities. Supports Absolute (Standard), Offset (Delta), and Scaled (x100) modes.
Calibration Heartbeat Periodically re-send calibration values (in minutes). Helps prevent timeouts on devices that expect frequent updates.
Ignore Off Members Prevents sending calibration updates to devices that are currently off, preserving battery life on wireless sensors and TRVs.
Exclude Off Members Exclude members that are currently off from temperature calculations (both current and target). Prevents a cold, switched-off radiator from dragging down the displayed average.
Device Mapping Automatically links external sensors to TRV internal sensors using HA Device Registry (for precise Offset calculation).
Min Temp Off Enforce a minimum temperature (e.g. 5°C) even when the group is off. This ensures valves are fully closed for frost protection (essential for TRVs that don’t close fully in off mode).

Sync Mode

Option Description
Sync Mode What to do when a member is changed outside the group. Disabled: ignore everything. Mirror: mirror changes. Lock: revert changes. Mirror/Lock: mirror selected attributes, revert unselected attributes. Master/Lock (requires Master Entity): mirror changes from the Master Entity only, revert changes from non-master entities.
Sync Attributes Which attributes the mode acts on. In Mirror: only selected attributes are mirrored, unselected = no action. In Lock: only selected attributes are reverted, unselected = no action. In Mirror/Lock: selected attributes are mirrored, unselected attributes are reverted. In Master/Lock: only the Master Entity’s attributes are mirrored, unselected = no action.
Respect Member Off State (Sync) Members that are manually turned off are left alone. Their off state is neither mirrored to others nor reverted back to the group target. Exception: if it is the last active member, the group itself switches to off (Last Man Standing). Direct group commands always reach all members regardless of this setting.

Window Control

Option Description
Window Action Turn Off (Default) or Set Temperature. Useful for frost protection.
Adopt Manual Changes Off (block all), All (passive tracking for all members), or Master Only (requires Master Entity).
Window Temperature Target temperature to set when ‘Set Temperature’ action is selected.
Room Sensor (Optional) Binary sensor (window/door) or cover entity for fast reaction. Covers are treated as “open” unless they are fully closed.
Zone Sensor (Optional) Binary sensor or cover entity for slow reaction (e.g. apartment or floor).
Room/Zone Delay Time before turning off heating (default: 15s / 5min).
Close Delay Time before restoring heating after windows close (default: 30s).

Presence Control

Option Description
Presence Control Mode Disabled (default) or Enabled.
Presence Trigger One or more entities reporting room presence (binary_sensor, device_tracker, or person). Any on or home state is treated as present; not_home and away are treated as absent. The group is occupied if any sensor reports presence.
Presence Zone (Optional) One or more zone entities. If configured, a person/device_tracker sensor only counts as present when located in one of the selected zones. Leave empty to treat any non-away state as present.
Away Action The fallback action to perform when absence is detected: Turn Off, Away Offset, Away Temperature, or Away Preset.
Away Offset (Away Offset action) Offset from current target when away (e.g. −2.0°C or +2.0°C).
Away Temperature (Away Temperature action) Fixed temperature to set when away.
Away Preset (Away Preset action) Preset mode to activate when away.
Away Delay Wait time (seconds) after sensor reports absence before activating away mode.
Return Delay Wait time (seconds) after sensor reports presence before restoring.

Schedule Automation

Option Description
Schedule Entity A Home Assistant schedule.* or calendar.* entity to control the group.
Bypass Entity (Optional) A second schedule.* or calendar.* entity acting as a priority layer. When a bypass slot is active, it overrides the base schedule.
Resync Interval Force-sync members to the desired group setting every X minutes (0 = disabled).
Override Duration Delay before returning to schedule after manual changes (0 = disabled).
Sticky Override Ignore schedule changes while a manual override is active.
Respect Member Off State (Schedule) Members that are manually turned off are skipped during scheduled changes and periodic resyncs — they are not forced back on. Direct group commands always reach all members regardless of this setting.
Retain Schedule Override Persist the active schedule entity across restarts when changed via set_schedule_entity service. Without this, the group always reverts to the configured default on restart.

Member Offsets

Option Description
Offset per Member Apply individual temperature shifts (±20°C, 0.5°C steps) so specific members run proportionately warmer or cooler than the group’s target setpoint.
Correct member offset (Default) Subtracts member offsets before averaging to show the room’s logical setpoint instead of the raw physical average.

Member Isolation

Option Description
Number of Rules How many independent isolation rules to configure (1–4). Each rule has its own trigger, members, delays, and action. Save after changing to reveal or hide additional rule sections.
Entities to Isolate Which group members this rule isolates.
Trigger Type Binary Sensor (activates when sensor is ON), HVAC Mode (activates when group mode matches), or Member Off (isolates each member individually when it turns off manually).
Isolation Sensor (Sensor trigger) Binary sensor that triggers isolation when active.
HVAC Mode Trigger (HVAC Mode trigger) The group modes that activate isolation.
Activate Delay Time to wait after the trigger activates before isolating members.
Restore Delay Time to wait after the trigger deactivates before restoring members.
Isolation Action What to send to the member when isolation activates: Set HVAC mode (default: off) or Set preset mode (e.g. building_protection for floor heating without a real off mode).
HVAC Mode (HVAC mode action) The HVAC mode to set on the isolated member (default: off).
Preset Mode (Preset mode action) The preset to set on the isolated member. Falls back to hvac_mode: off if the preset is not supported by the device.

Member Template

Option Description
Enable Range Template Enables automatic heat_cool range control for all members that do not natively advertise heat_cool. No manual selection needed — the group detects eligible members automatically.
Deadband Action What to do when the room temperature is already within the target band (between target_temp_low and target_temp_high). Turn Off (default) or Fan Only.

Advanced Settings

Option Description
Debounce Delay Wait before sending commands. Higher values prevent ‘rapid-fire’ commands when sliding controls, but feel slower (default: 0.5s).
Force Retry Always send commands to all members, even if they already report the target state. Useful for IR-based AC units or other devices that may not reliably update their state after receiving a command.
Retry Attempts Number of retries if a command fails.
Retry Delay Time between retries (e.g. 1.0s).
Staggered Call Delay Time to wait between individual commands to group members (0–2s, default: 0). Staggering calls prevents radio flooding in large Zigbee/Matter networks. Also applies to calibration writes.
UI Grace Period Duration (seconds) for which the group displays the commanded value immediately after a UI action, before slow member devices echo their state back. Prevents visual flicker on the dashboard. Applies to all attributes: HVAC mode, temperature, humidity, fan/preset/swing modes.
Expose Smart Sensors Create additional temperature and humidity sensor entities that reflect the group’s current aggregated state (useful for historical graphs and dashboards).
Expose Member List Add the entity_id attribute containing the list of all member entity IDs to the climate group helper entity (enables use of expand() templates).
Expose Configuration Sensor Create a diagnostic configuration sensor entity (sensor.*_configuration) containing a portable JSON snapshot of all group settings under the settings_json attribute.

Services

climate_group_helper.boost

Temporarily set the group to a target temperature for a fixed duration. When the timer expires, the group restores automatically to the active schedule slot (if configured) or its previous target state.

Service Fields:

Field Required Description
temperature No* Absolute target temperature during boost (e.g. 24.0).
temperature_offset No* Relative offset added to the current target temperature (e.g. +3.0 or −2.0).
duration Yes Duration in minutes (minimum 1).

*Either temperature or temperature_offset must be provided.

Manual changes (direct group commands or Mirror adoptions) abort the boost immediately. Lock enforcement does not. Boost is ignored while a group block (like an open window) is active.

Example (absolute):

service: climate_group_helper.boost
target:
  entity_id: climate.my_group
data:
  temperature: 24.0
  duration: 30

Example (offset):

service: climate_group_helper.boost
target:
  entity_id: climate.my_group
data:
  temperature_offset: 3.0
  duration: 30

climate_group_helper.set_schedule_entity

Dynamically change the active schedule entity for a group.

Service Fields:

Field Required Description
schedule_entity No The entity ID of the new schedule or calendar (e.g. schedule.* or calendar.*). If omitted, the group reverts to its configured default schedule entity.

Calling this service without an entity cancels any active override timers (including boost) and immediately re-applies the current schedule slot.

Example:

service: climate_group_helper.set_schedule_entity
target:
  entity_id: climate.my_group
data:
  schedule_entity: schedule.guest_mode

climate_group_helper.set_schedule_bypass_entity

Dynamically change the active bypass schedule entity for a group at runtime. The bypass schedule acts as a priority layer that overrides the base schedule. When a bypass slot is active, the group’s state is snapshotted on bypass start and restored on bypass end.

Service Fields:

Field Required Description
schedule_entity No The entity ID of the new bypass schedule or calendar (e.g. schedule.* or calendar.*). If omitted, the group reverts to its configured default bypass schedule entity.

Example:

service: climate_group_helper.set_schedule_bypass_entity
target:
  entity_id: climate.my_group
data:
  schedule_entity: calendar.holiday_schedule

Calling this service without an entity clears the bypass schedule and immediately re-applies the current schedule slot.

climate_group_helper.apply_config

Apply a portable JSON configuration to a group. This is useful for copying logic settings between groups or restoring a backup from a configuration sensor.

Service Fields:

Field Required Description
settings Yes A JSON object containing the configuration. Source: settings_json attribute from a Configuration Sensor.
include_member_list Yes If true, overwrites the list of member and isolation entities.
include_entity_selectors Yes If true, overwrites linked sensors and per-member offsets.

By default, only logic settings (Sync Modes, Window Control, Schedules, etc.) are transferred. Set the two inclusion flags to true if you also want to copy the list of members and their linked sensors. The group name is always preserved.

[!IMPORTANT] Reload Behavior: Calling this service triggers a full reload of the group entity. All active, non-persisted timers (e.g., Boost, Window delays) will be reset immediately. This is the same behavior as when making changes through the UI.

Backup & Migration

The integration provides built-in ways to snapshot, restore, and clone your logic settings.

Example — Copy settings from one group to another:

  1. Enable the configuration sensor on the source group.
  2. Call the apply_config service on the target group:
service: climate_group_helper.apply_config
target:
  entity_id: climate.bedroom_group
data:
  settings: ""
  include_member_list: false
  include_entity_selectors: false

Installation

  1. Open HACS.
  2. Search for Climate Group Helper.
  3. Click Download
  4. Restart Home Assistant.

Manual

  1. Download the latest release.
  2. Copy custom_components/climate_group_helper to your custom_components folder.
  3. Restart Home Assistant.

Setup

  1. Go to Settings > Devices & Services > Helpers.
  2. Click + Create Helper > Climate Group Helper.
  3. Follow the configuration flow to add your entities.

To unlock all features: Open the group’s Configuration menu and enable Advanced Mode in General Settings. This will reveal all category-specific options.

Troubleshooting

Issues after updating?

If you experience strange behavior after an update (e.g. settings not saving), first try restarting Home Assistant. Re-creating the group usually resolves any remaining migration-related problems.

Debug Logging

Option 1: Via UI (Instant)

  1. Go to Settings > Devices & Services > Devices.
  2. Search for your Climate Group and click it.
  3. In the Device info panel, click the Climate Group Helper link (next to the icon).
  4. On the integration page, click the ⋮ menu (top right) and select Enable debug logging.
  5. Reproduce the issue, then disable logging. The file will download automatically. (Note: For startup-related issues, restart HA after enabling logging.)

Option 2: Via YAML (Manual)

Add this to your configuration.yaml (requires restart):

logger:
  default: info
  logs:
    custom_components.climate_group_helper: debug

Sharing the log

Ideally, share the full log file. If you prefer not to share unrelated data, you can strip it down to only the integration’s entries:

grep 'climate_group_helper' home-assistant.log > cgh.log

Contributing

Found a bug or have an idea? Open an issue on GitHub.

License

MIT License

This site is open source. Improve this page.
